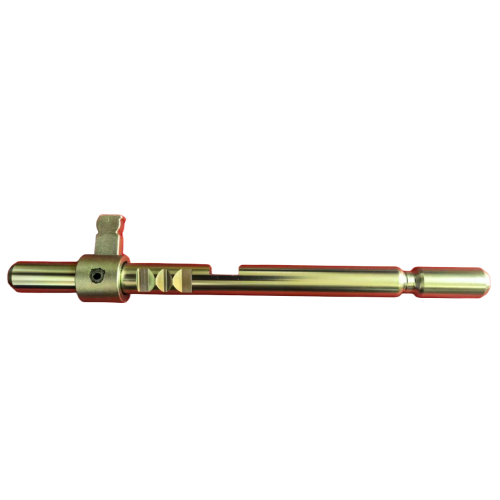

Precision Gear Engagement: The Shift Fork Shaft Assembly

Overview

The Shift Fork Shaft Assembly represents the mechanical heart of manual and synchronized transmission systems, serving as the critical interface between driver intent and gear selection. This fundamental component is engineered to facilitate the precise selection and engagement of gears within complex drivetrain architectures. By integrating a robust, fork-shaped lever with a precisely machined shaft, this assembly ensures that kinetic energy is transferred efficiently from the engine to the wheels. The design prioritizes durability under high torque loads while minimizing shift effort, thereby enhancing overall vehicle drivability and transmission longevity. Manufactured from high-strength steel alloys, each unit undergoes rigorous quality control to meet exacting tolerances, ensuring reliable performance in both standard and high-performance applications.

Key Features

High-Strength Alloy Construction: Fabricated from premium-grade steel alloys designed to withstand extreme shear stresses and torsional forces common in heavy-duty and sport driving conditions. Precision Machining: Components are CNC-machined to micrometer-level tolerances, ensuring smooth linear or rotational movement without binding or excessive play. Optimized Geometry: The fork shape is specifically contoured to maximize contact surface area with synchromesh sleeves, reducing wear and preventing gear clash during rapid shifts. Corrosion Resistance: Surface treatments and material selections provide enhanced resistance to environmental factors and lubricant degradation over time. Direct Mechanical Action: Eliminates reliance on electronic actuators for primary gear selection, offering a direct, tactile connection that appeals to enthusiasts and professionals alike. Seamless Power Transfer: Engineered to minimize energy loss during gear changes, contributing to improved fuel efficiency and responsive acceleration.

Detailed Description

In the intricate world of automotive transmissions, the Shift Fork Shaft Assembly plays an indispensable role. It is not merely a moving part but a sophisticated mechanism that translates user input into mechanical reality. When the transmission selector mechanism is activated, whether through a traditional stick shift or a modern sequential shifter, it moves the shaft either linearly along its axis or rotationally depending on the specific transmission design. This motion causes the attached shift fork to slide the target gear's synchromesh sleeve or clutch collar into mesh with the corresponding gear located on either the countershaft or the main shaft. This direct mechanical action is crucial for achieving smooth, positive gear changes. Unlike hydraulic or electronic systems that may introduce lag or variability, the Shift Fork Shaft Assembly provides immediate feedback and consistent engagement. The precision engineering involved ensures that the synchronization process occurs seamlessly, allowing the rotating speeds of the gears to match before full engagement takes place. This prevents the harsh grinding noises associated with improper shifting and protects the internal components from premature wear. The materials used in the construction of this assembly are selected for their exceptional strength-to-weight ratio and fatigue resistance. High-strength steel alloys are chosen because they can endure the repetitive shock loads generated during gear shifts, particularly in performance vehicles where drivers frequently downshift under heavy braking or upshift at high RPMs. The machining process involves advanced techniques to achieve tight dimensional controls, ensuring that every component fits perfectly within the transmission housing. This level of precision is vital for maintaining proper alignment and lubrication flow, which are essential for optimal function and extended service life. Furthermore, the design of the shift fork itself is optimized for leverage and stability. The fork arms are reinforced to prevent bending or deformation under load, while the central bore is hardened to resist wear from the shaft. This combination of features ensures that the assembly remains stable and effective throughout its operational lifespan. Proper lubrication is equally important; the assembly relies on a thin film of transmission fluid to reduce friction between moving parts. Without adequate lubrication, even the most precisely manufactured components would suffer from accelerated wear and potential failure. Therefore, regular maintenance of the transmission fluid is recommended to ensure the continued reliability of the Shift Fork Shaft Assembly.

Usage Scenarios

Manual Transmission Vehicles: Ideal for classic cars, modern sports cars, and trucks equipped with traditional manual gearboxes where driver control is paramount. Racing and Motorsport Applications: Used in race-prepared vehicles where quick, accurate shifts are necessary to maintain lap times and competitive advantage. Heavy-Duty Commercial Transport: Essential in commercial trucks and Industrial Machinery that require durable, reliable gear engagement under heavy loads. Restoration Projects: Perfect for restoring vintage automobiles to their original specifications, ensuring historical accuracy while providing modern reliability. Performance Upgrades: Suitable for enthusiasts looking to replace worn or damaged factory components with higher-quality aftermarket alternatives for improved shift feel and durability. Industrial Machinery: Employed in various types of mechanical power transmission systems outside of the automotive industry, such as in manufacturing equipment and agricultural machinery.
