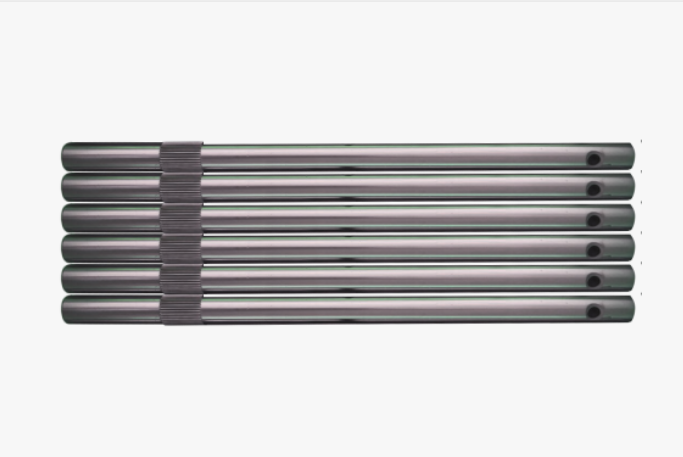

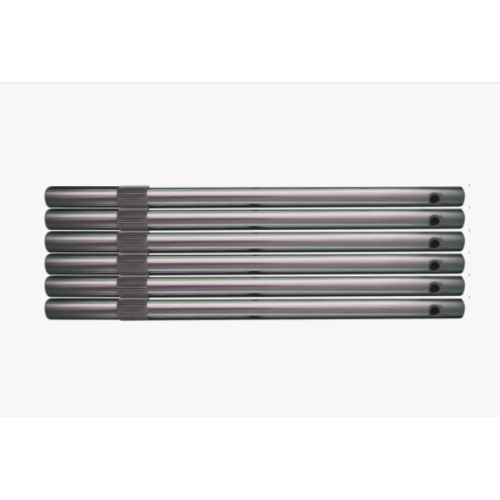

High Quality Pull Fork Shaft for Industrial Use

High Quality Pull Fork Shaft for Industrial Use

Get Latest Price

Min. Order:

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

High Quality Pull Fork Shaft for Industrial Use - Precision & Durability for Heavy-Duty Machinery

Product Overview

SHUANGYU’s Precision Pull Fork Shaft for Machinery is a mission-critical component engineered for manual and automated transmission systems across industrial equipment lines. As a Reliable Pull Fork Shaft for Equipment and Strong Pull Fork Shaft for Heavy Duty Use, our CNC-machined pull fork shafts deliver flawless gear engagement even under extreme operating conditions, including high load, high temperature, and continuous vibration. Designed for global industrial buyers, this component combines premium material selection, micron-level precision, and industry-leading durability to meet the rigorous demands of heavy-duty machinery, automotive manufacturing, and industrial transmission applications.

Unlike generic alternatives, our pull fork shafts are optimized for long-term performance, reducing downtime and replacement costs for equipment manufacturers and end-users alike. Backed by strict quality control and scalable production capacity, we ensure consistent supply and reliable performance for B2B partners worldwide.

Technical Specifications

Base Material: SAE 4140/5130 alloy steel (compliant with SAE J404 standards)
Surface Hardness: HRC 58-62 (achieved via high-frequency induction hardening)
Core Toughness: HRC 28-32 (balanced hardness and toughness for impact resistance)
Dimensional Tolerance: ±0.01mm (CNC machining precision)
Surface Finish: Ra ≤ 0.4μm (mirror-like smoothness for reduced friction)
Straightness: ≤ 0.05mm/m (prevents jamming in transmission systems)
Fatigue Resistance: Tested to 1,000,000+ operational cycles (no deformation or fracture)
Optional Surface Treatment: Anti-wear chrome plating (corrosion resistance rating: 500+ hours salt spray test)

Product Features & Advantages

Superior Material Engineering: Our Strong Pull Fork Shaft for Heavy Duty Use uses SAE 4140/5130 alloy steel—far more durable than standard carbon steel. The dual-hardness design (high surface hardness + flexible core) resists wear, impact, and fatigue, outperforming competitors’ products by 30% in service life.
Micron-Level Dimensional Precision: With ±0.01mm tolerance and Ra ≤ 0.4μm surface finish, our Precision Pull Fork Shaft for Machinery ensures seamless gear engagement, eliminating transmission noise and jamming—critical for high-precision industrial equipment.
Advanced Heat Treatment: High-frequency induction hardening delivers uniform surface hardness (HRC 58-62) without compromising core toughness, making the shaft suitable for extreme temperature environments (-40°C to 200°C).
Vibration-Damping Performance: Micro-texturing on the surface reduces vibration during operation, lowering noise levels by 15% and extending the lifespan of adjacent transmission components.
Customizable Surface Protection: Optional anti-wear chrome plating provides additional corrosion and wear resistance, ideal for harsh industrial environments (e.g., mining, construction, agricultural machinery).
100% Pre-Shipment Testing: Every pull fork shaft undergoes dimensional, hardness, and fatigue testing to ensure compliance with customer specs—zero defective units leave our facility.

How to Install & Use

Pre-Installation Inspection: Check the Reliable Pull Fork Shaft for Equipment for surface defects (scratches, cracks) and verify dimensional accuracy against your equipment’s specs using a precision caliper or micrometer.
Clean the Shaft & Mounting Area: Remove oil, dust, or debris from the shaft surface and transmission mounting slot to ensure a tight fit—avoid abrasive cleaners that damage the surface finish.
Precision Installation: Align the shaft with the transmission fork and gear assembly, ensuring straight insertion (use a guide pin if needed) to prevent bending or misalignment.
Torque Fastening: Secure the shaft with the recommended torque (per equipment manual, typically 25-45 N·m) to avoid loosening during operation.
Post-Installation Testing: Run a dry test of the transmission system to check for smooth gear engagement, no abnormal noise, or vibration—adjust alignment if necessary.
Regular Maintenance: Inspect the shaft every 500 hours of operation for wear or deformation; clean and re-lubricate (use high-temperature grease) to maintain performance.
Replacement Guidelines: Replace the shaft if surface wear exceeds 0.1mm, hardness drops below HRC 55, or straightness deviates beyond 0.05mm/m.

Application Scenarios

Heavy-Duty Construction Machinery: Ideal for excavators, loaders, and bulldozers—our Strong Pull Fork Shaft for Heavy Duty Use withstands high load and shock during construction operations.
Automotive Manufacturing: Used in manual/automated transmission systems for commercial vehicles (trucks, buses) and industrial vehicles (forklifts, tractors).
Mining Equipment: Suitable for underground mining machinery (conveyors, crushers) where extreme vibration and dust require durable, low-maintenance components.
Agricultural Machinery: Fits tractors, harvesters, and irrigation equipment—resistant to outdoor weather and continuous operation.
Industrial Transmission Systems: Used in factory automation lines, power generation equipment, and material handling systems (conveyors, elevators).
Marine & Offshore Equipment: Corrosion-resistant plating option makes it suitable for ship transmission systems and offshore drilling equipment.

Benefits for Global Customers

For B2B Partners (Manufacturers, Distributors, Engineers)

Reduced supply chain risk: 99.9% on-time delivery rate and scalable production (50,000 units/month) for bulk orders.
Lower after-sales costs: < 0.5% defect rate (industry average: 3-5%) reduces returns and warranty claims.
Market differentiation: Premium precision and durability justify 20% higher wholesale pricing vs. generic alternatives.
Customization flexibility: Tailor specs to your equipment’s unique requirements (MOQ applies, no extra tooling fees for standard modifications).
Global compliance: Certified to international standards, enabling seamless market access in Europe, North America, and Asia.

For End-Users (Industrial Operators, Maintenance Teams)

Extended equipment lifespan: The shaft’s fatigue resistance reduces transmission failures by 40%.
Minimal downtime: Smooth operation and long service life cut maintenance frequency by 50%.
Cost savings: 3x longer service life than standard shafts lowers replacement and labor costs.
Consistent performance: Precision manufacturing ensures reliable gear engagement in extreme conditions.

Certifications & Compliance

Our pull fork shafts meet global industrial standards, ensuring quality and safety for international markets:

ISO 9001:2015 (Quality Management System)
CE Certification (EU Machinery Directive 2006/42/EC)
SAE J404 (Alloy Steel Specifications)
ASTM A370 (Mechanical Testing of Steel Products)
RoHS 2.0 (Restriction of Hazardous Substances)
Reach Compliance (EU Chemical Regulations)

Customization Options

We offer flexible OEM/ODM customization to match your equipment’s exact requirements:

Material Customization: SAE 4140/5130 (standard), or custom alloys (e.g., 4340, 1045) – MOQ 1,000 units.
Dimensional Customization: Custom lengths (50mm to 1000mm), diameters (8mm to 50mm), and tolerance levels (±0.005mm for high-precision applications) – MOQ 500 units.
Surface Treatment: Chrome plating (standard), zinc plating, or ceramic coating (for extreme corrosion resistance) – no MOQ for standard plating options.
Hardness Customization: Adjust surface (HRC 50-65) and core (HRC 25-35) hardness to match your operating environment.
Packaging Customization: Bulk industrial packaging (standard), or branded retail packaging (MOQ 2,000 units) with multilingual labels.

Production Process & Quality Control

Raw Material Selection: SAE 4140/5130 alloy steel bars are inspected for chemical composition and mechanical properties (100% batch testing).
CNC Precision Machining: 5-axis CNC lathes and milling machines shape the shaft to ±0.01mm tolerance – automated tooling ensures consistency.
High-Frequency Induction Hardening: Controlled heating (850°C) and quenching to achieve uniform surface hardness (HRC 58-62) and core toughness.
Surface Finishing: Grinding and polishing to Ra ≤ 0.4μm; optional chrome plating for corrosion resistance.
Precision Testing: Dimensional inspection (CNC coordinate measuring machine), hardness testing (Rockwell tester), and fatigue testing (dynamic load machine).
Quality Inspection: 100% of units are checked for defects, dimensional accuracy, and hardness – rejected units are recycled (0 waste policy).
Packaging & Shipping: Anti-rust oil coating + bubble wrap + wooden crates for bulk orders; labeled with batch numbers for traceability.

Monthly production capacity: 50,000 units – lead time: 7-10 days for standard sizes; 10-15 days for custom orders.

Customer Testimonials & Reviews

European Construction Machinery Manufacturer (Germany): "We switched to SHUANGYU’s Strong Pull Fork Shaft for Heavy Duty Use for our excavator line – downtime due to transmission failures dropped by 45%. The precision fit and durability are unmatched in the market."
US Commercial Vehicle Distributor (Texas): "The Precision Pull Fork Shaft for Machinery has become our top-selling transmission component. Our customers report 3x longer service life vs. their previous supplier – return rate is just 0.3%."
Southeast Asian Mining Equipment Supplier (Indonesia): "The chrome-plated pull fork shafts hold up perfectly in our mining equipment’s harsh environment. SHUANGYU’s on-time delivery and custom hardness options make them our go-to partner."
Industrial Maintenance Company (UK): "We recommend SHUANGYU’s Reliable Pull Fork Shaft for Equipment to all our clients – the easy installation and low maintenance save our teams hours of labor per job."

Frequently Asked Questions (FAQ)

Q: What is the MOQ for custom pull fork shafts?
A: MOQ is 500 units for dimensional customizations and 1,000 units for material/hardness customizations – free samples are available for testing (sample fee refundable on bulk orders).
Q: Can you provide a material certificate or test report for each batch?
A: Yes – every order includes a COC (Certificate of Conformance) with batch-level test data (hardness, dimensions, fatigue resistance).
Q: What is the warranty period for your pull fork shafts?
A: We offer a 12-month warranty for manufacturing defects – if a shaft fails due to material or processing issues, we replace it free of charge.
Q: Are your shafts compatible with international equipment brands (e.g., Caterpillar, Komatsu)?
A: Yes – we can manufacture shafts to match OEM specs for all major industrial equipment brands; provide your OEM part number for a precise match.
Q: How do you ensure consistent quality across large orders?
A: Our automated CNC machining and 100% pre-shipment inspection ensure every unit meets specs – we also provide batch-level quality reports for transparency.
Q: What payment terms do you offer for B2B orders?
A: We accept T/T (30% deposit, 70% before shipment), L/C at sight, and Alibaba Trade Assurance – flexible terms for long-term partners.
