Modular manual transmission

2025,06,12

The manual transmission adopts a modular design. By changing the number of variable speeds and maximum torque density, the same layout can be applied to multiple engines. In addition, we continuously optimize all elements from bearings and seals to power density and fuel efficiency in the transmission design process.planetary gear shafts for new energy differentials.Electronic parking mechanism cam.Production and manufacturing of miscellaneous parts. We strive to improve the efficiency of manual transmissions as much as possible, achieving a reduction in transmission weight.

For buses and light commercial vehicles, we manufacture inline transmissions for rear and four-wheel drive, longitudinal variable speed drive axles for front, rear, and all wheel drive, and variable speed drive axles for front or all wheel drive.

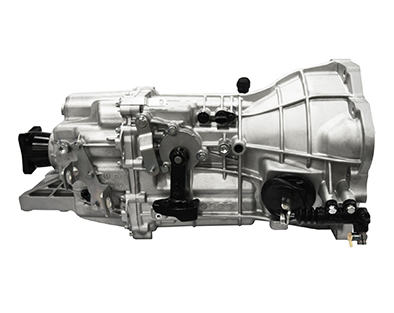

Rear wheel drive manual transmission 5/6/7 MTI550

The newly designed modular manual transmission series products have better fuel economy and lower product costs. The MT88 manual transmission product series currently has three different specifications, which adopt a leading modular design concept and can adapt to various requirements from customers around the world and future markets.

Specifications and characteristics

Maximum input torque: 900 Nm

Weight (including oil): 59 kg

Center distance: 88 mm

Drive form: rear wheel drive&all wheel drive

Installation length: 632/623/617 mm

Total length: 721/714/664 mm

1st gear ratio: 4.283

Speed ratio span range: 10.198

Shift mode selection: wire drawing operation

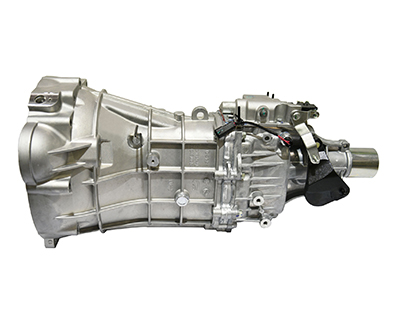

High torque rear wheel drive manual transmission 5MTI301

Modular system design product, available in 5MT and 6MT options. This manual transmission is suitable for pickup trucks and light passenger vehicles, and has the advantages of high transmission efficiency, light weight, and small size; Significantly increased torque capacity and torque density; Low cost, long-term after-sales maintenance and upkeep.

Specifications and characteristics

Transmission gear: 5/6 speed

Drive form: rear wheel drive&all wheel drive

Transmission form: 3-axis longitudinal

Maximum torque: 350Nm

Weight (without oil): 43Kg/49.5 kg

Installation length: 648/756mm

Center distance: 77.5 mm

Maximum speed ratio range: 4.65-5.64

Maximum vehicle weight: 4700 kg

Shift mode selection: wire drawing control&direct control

High torque rear wheel drive manual transmission 5MTI280

Modular system design products that meet the constantly growing torque requirements and comply with new legal and regulatory requirements. Suitable for light truck and bus models, applicable to current Chinese laws and regulations, market development needs and trends, with an increased transmission ratio range, significantly increased torque capacity and torque density, and significant fuel economy and load capacity brought by lightweight achievements.

Specifications and characteristics

Transmission gear: 5-speed

Drive form: rear wheel drive&all wheel drive

Transmission form: 3-axis longitudinal

Maximum torque: 350Nm (1/R: 340 Nm)

Weight (without oil): 46kg

Installation length: 646 mm

Center distance: 88mm

Maximum speed ratio range: 7.05

Maximum vehicle weight: 7500 kg

Shift mode selection: wire drawing control 6MTI380

High torque rear wheel drive manual transmission 6MTI380

A brand new modular system design product to fully meet the constantly growing torque requirements. Mainly matched with the Great Wall Cannon, Yuhu, and Ruimai, it has significantly increased torque capacity and torque density. Adopting honing and grinding processes, with low noise; Fully synchronized gear shifting, excellent shifting performance; Leading shift mechanism and fork design concept, rigorous bench testing, high reliability.

Specifications and characteristics

Transmission gear: 6-speed

Drive form: rear wheel drive&all wheel drive

Transmission form: 3-axis longitudinal

Maximum torque: 420Nm

Weight (without oil): 55 kg

Installation length: 760 mm

Center distance: 82 mm

Maximum speed ratio range: 6.02-7.79

Maximum trailer weight: 3000kg

Maximum vehicle weight: 4000 kg

Gear shifting mode: wire drawing operation&direct control

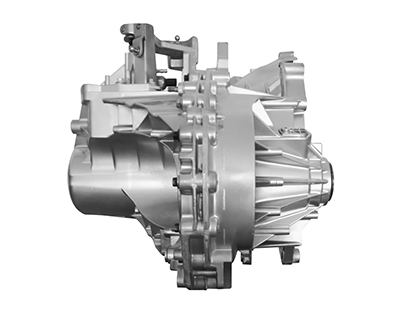

Medium torque front wheel drive manual transmission 5MTT310

A medium torque front wheel drive manual transmission developed for light commercial vehicles, using an integrated shifting mechanism and high gear accuracy, with performance reaching the level of passenger cars.

Specifications and characteristics

Maximum input torque: 310 Nm

Weight (excluding oil): 47 kg

Installation length: 420mm

Distance from input shaft to differential: 205 mm

1st gear ratio: 3.8

Speed ratio span range: 5.64
